Relining Costs What It Does Because You're Paying for a New Pipe Built Inside the Old One — Not a Patch on It

Cured-in-place pipe — the trenchless method most people mean when they say “relining” — is a resin-saturated flexible tube that gets pulled or inverted into the old pipe, pressed tight against the walls, and cured in place. What comes out the other side is continuous and jointless, running the full length of the original as a new pipe-within-a-pipe. That last part is the part that costs money: it isn't a film painted on the wall, it's a second pipe.

Here's the detail that makes the resin a cost driver instead of a line item. In a felt-tube liner, the cured resin is the structural pipe. In a fiberglass or carbon-fiber liner, the resin is the matrix that lets those fibers carry the load. Either way, the chemistry in that tube is doing the structural work, which is why nobody is buying it by the bucket at a hardware store.

Epoxy relining resin is a 100%-solids, two-part system — an epoxide plus a hardener, mixed to a specific ratio. Compared to polyester and vinyl-ester resins, epoxy generally has a shorter pot life, the working window before the mix starts to set. The resin doesn't wait for anybody. Part of what the price buys is a crew that mixes, saturates, and places the liner inside that window without wasting a batch. Timing and skill are on the invoice whether they're itemized or not.

Curing isn't drying. On a light cure, a UV or LED assembly travels the liner while the crew logs time, rate of travel, pressure, the temperature inside the liner, and the light's power output along the whole length. Heat cures are monitored the same way. That record exists so the cure can be verified — and it gets handed to you. The before and after inspection videos are formal deliverables, submitted to the property owner, not a courtesy the crew does if they feel like it.

A relining job is book-ended by camera work. Before the liner goes in, the pipe is cleaned and inspected on closed-circuit TV by a certified operator, because you can't order or install a liner for a pipe you haven't measured and verified. After the liner cures, a second closed-circuit inspection confirms it. Two separate passes, each its own step, each its own deliverable. When a relining quote looks high next to a snake-and-go, this is a chunk of the reason — you're paying two inspectors' worth of camera work bracketing the actual liner.

This is the part that surprises people, and it's arithmetic, not a scam. The big costs on a lining job — mobilization, cleaning, the before-and-after camera work, bypass pumping to keep the line in service, and material testing — are billed as fixed lump sums or separate items. They do not shrink with pipe length. On a long run, those fixed costs spread across a lot of feet and the per-foot number comes down. On a short run, that same overhead spreads across very few feet, and the per-foot number climbs — sometimes past what it would cost to simply dig that short section out. Which method actually fits your pipe is a real decision, and it's the one we work through on our pipe repair page before anyone quotes either option.

A cured-in-place liner is designed for a service life of 50 years or greater, as a stand-alone structural pipe. That's why the cost is front-loaded: you pay once, for a result measured in decades — on a pipe that qualified for lining in the first place. Which brings up the one thing the price can't fix.

A pipe that's broken, collapsed, or sagging into a belly can't just be lined. Those sections have to be dug up and open-cut repaired first. Shoot a liner through a belly and you get a beautifully sealed belly — it still holds standing water, it still catches solids, and it still clogs. Now you've paid for the liner and you still need the excavation the liner was supposed to spare you. That's the comparison math the “cheaper than digging” pitch quietly skips. What a host pipe has to have before it can take a liner is the whole question in lining versus replacing channeled cast iron, and for a yard sewer line the trenchless-or-dig call gets weighed in is trenchless sewer repair worth it.

We run the camera first. If the pipe can't hold a liner, you hear that before anyone quotes one — not six months later when the sealed belly backs up. Getting shocked by quotes is a common enough experience that one customer, Lisa Powell, put it in her first sentence: she “had called around and got several outrageous quotes.”

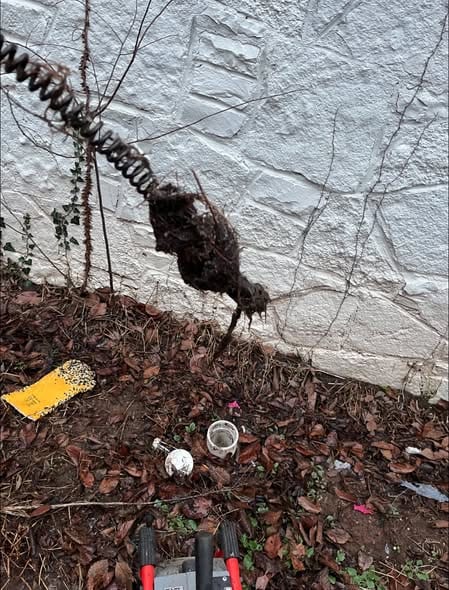

Relining is the right tool when the host pipe is structurally sound and correctly sloped and the failure is cracking, bad joints, or root intrusion. Seal those and you get a stand-alone structural pipe rated for decades. It's the wrong tool when the pipe is broken, collapsed, or bellied — then it's dig-and-replace, because only excavation can put the grade back.

So the honest answer to “should I reline this?” is “it depends on what the camera shows,” and that's not a dodge to avoid quoting you. It's the only way to know which of those two situations you're actually in. A crew that names the price before it names the pipe's condition has the order backwards. One customer, Jad Asmar, wrote that “Zeek spent extra time educating me on the code” — that direction, explaining what's there and why, is the one that ends with the right method instead of the most profitable one.

If someone handed you a relining number and you can't tell what's inside it, or pitched you “no-dig” without ever putting a camera down the line, that's the part to slow down on. We inspect first, show you the footage, and tell you whether your pipe can even take a liner before anyone talks price. If it can't, we say so — and we tell you what it actually needs instead.
