Is an Expansion Tank Required by Code in Edmond? Yes — But Only If Your Home Is a Closed System
In Edmond, the 2018 IPC — with Oklahoma's 2021 amendments — requires a thermal expansion tank only on a closed system: one with a backflow preventer, check valve, or pressure-reducing valve between your water heater and the city main. On a true open system, IPC 607.3 does not require one. A PRV or check valve at the meter means you're closed.
How to tell if code requires a tank at your house
Some of the "code requires it" quotes we see are legitimate. Others are a sales script. Which one you're looking at comes down to a single question: is your plumbing a closed loop or not? That one distinction decides whether a tank is a real safety requirement or a line item padding an invoice. Here's how to tell which side of it you're on, and what the code actually says.
| What's on your line | What it means | What Edmond code calls for |
|---|---|---|
| A pressure-reducing valve (PRV) where the main enters the house | Water can't flow back to the city main | Closed system — IPC 607.3 requires a thermal expansion control device |
| A backflow preventer or check valve at the meter | The loop is sealed one-way | Closed system — expansion tank or approved device required |
| No PRV, check valve, or backflow device; heated water pushes freely back toward the main | Open system | IPC 607.3 does not require a tank |
| T&P valve weeps after every heating cycle; gauge spikes past 80 PSI | Thermal expansion on a closed system with no working tank | Tank required, and static pressure checked (IPC 607.3) |
If you can find a one-way device on your main line, you're closed and a tank is genuinely required. If nothing on the line stops water from flowing back to the street, the IPC doesn't require one — and anyone telling you otherwise is selling, not diagnosing.
The mechanical reason the loop matters
Water expands when you heat it. Your water heater warms 40 to 50 gallons, and that heated volume takes up more room than it did cold.
On an open system, that extra volume has an exit — it pushes harmlessly back into the city main. Nothing builds up.
Put a one-way device in the line — a PRV, a check valve, or a backflow preventer — and you've sealed the main off. Now the expanding water has nowhere to go. Pressure climbs, often past 150 PSI, well beyond what your temperature-and-pressure (T&P) relief valve is built to sit at. The valve starts weeping just to bleed the pressure off. That drip is the symptom; the sealed loop is the cause.
A thermal expansion tank is the cushion that absorbs it. Inside a steel shell is a heavy-duty butyl rubber diaphragm splitting the tank into a water chamber and a dry air chamber, factory pre-charged to 40 PSI, with a Schrader valve on top — the same valve stem as a bike tire. When the heater cycles and pressure rises, water pushes the diaphragm against the air cushion instead of against your T&P valve.
The one step that makes or breaks the whole installation is the pre-charge. That factory 40 PSI almost never matches a real house. We put a liquid-filled gauge on your exterior hose bibb, read your actual static pressure — say 65 or 72 PSI — then charge the tank's air side through the Schrader valve with a hand pump or compressor until it matches, before water ever touches it. Skip that and the diaphragm collapses under municipal pressure, and the tank water-logs within months. At that point you paid for a tank that does nothing.

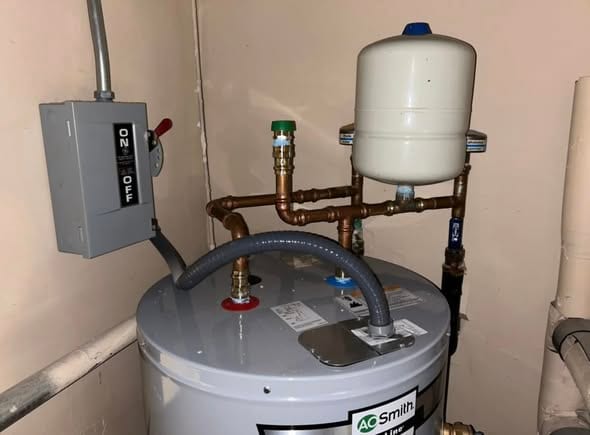

Then it gets hard-piped to a rigid brass tee on the cold inlet and physically supported. A water-logged tank holds roughly two gallons and can top 20 pounds. Hang that off a flex hose or a sagging PEX line and you've put shear stress on a joint that was never meant to carry it.
Sizing is not guesswork either. A 2.0-gallon Amtrol Therm-X-Trol ST-5 is rated for a 40- or 50-gallon heater running up to 140°F with static pressure up to 80 PSI. Move to an 80-gallon tank, or static pressure over 80 PSI, and the correct part steps up to a 4.4-gallon ST-12. Dropping a small tank on a big system to shave cost is how diaphragms fail early.
"Zeek spent extra time educating me on the code as well as went the extra mile to give me tips to improve the longevity of my home's plumbing."
The scam: "required by code" as a weapon
The phrase "required by code" gets weaponized two opposite ways, and both are worth recognizing.
Weaponized as an upsell. Even on an open system where the IPC doesn't require a tank — or when the real fix is one small part — a predatory tech writes "mandatory code upgrade" on the invoice and quotes a "code-compliant system replacement with a new expansion tank" at $2,800 to $3,500. Then comes the offer to finance it on the spot through a GreenSky deferred-interest plan. The tank is a small brass-and-steel part. The dollar figure is a script, not a material cost. This is textbook System Replacement Fraud stapled to the GreenSky financing trap.
Weaponized by skipping it. The low-bid installer does the reverse. They set a heater on a closed system and leave the required expansion tank off — sometimes the T&P discharge piping too — to save a few dollars in parts. Now your water heater is a sealed, pressurized vessel with no cushion and a relief valve doing a job it was never meant to do alone. When a tank like that finally fails, it doesn't drip. It releases, and the water damage runs $50,000 to $150,000. That's the "Skipping TPR / Expansion Tanks" tactic, and it's the one that ends up on an insurance claim.
What we do sits between the two extremes: check for a one-way device, confirm whether code actually requires the tank at your address, size it to your heater, pre-charge it to your static pressure, and hard-pipe and support it. If your system is open and doesn't need one, we say so and move on. We repair and install water heaters — which means we'd rather tell you what you don't need than sell you a project.
The maintenance clock
An expansion tank is not install-and-forget. The air pre-charge bleeds off slowly over the years. Once it drops below your static line pressure, the diaphragm floods, the tank water-logs, and you're right back to a weeping T&P valve — same symptom, dead cushion.
The clearest tell is weight. A tank that's supposed to be mostly air on top starts to feel surprisingly heavy once it water-logs. As general guidance — not a code procedure — some plumbers also tap the shell top to bottom, listening for a hollow ring on the upper air half and a solid, dead sound on the lower water half; a tank that sounds solid all the way up has usually lost its charge. Either way, check it when you exercise your T&P valve, and don't ignore a relief valve that has started dripping — on a closed system, that's the tank telling you it quit.
The price anchor
Here's the magnitude to keep in your head.
- The "your code requires a full system replacement with a new expansion tank" quote runs $2,800 to $3,500, financed on a tablet before you've had time to get a second opinion.
- The reality on a closed system is a correctly sized tank, pre-charged to your home's static pressure and hard-piped to the cold inlet. A part, installed right. Not a project.
"…willing to explain everything they do so a non-plumber can understand."
Get a straight answer
If you're not sure whether your Edmond home is closed or open, if your T&P valve has started weeping, or if someone handed you a $3,500 "mandatory code upgrade" quote for a tank, get a second read before you sign anything. We'll tell you what your system actually is and what the code actually requires — including "you don't need one."
Learn more on our thermal expansion tank page, see the full water heater services we handle, or read up on tank water heater repair if your unit is showing other symptoms.
Call or text us — 405-519-1868.
Questions homeowners ask
Look for a one-way device on the main line where it enters the house: a pressure-reducing valve (PRV), a check valve, or a backflow preventer at the meter. Any one of them seals your plumbing into a closed loop. Without them, heated water can push back into the city main and you're open. On a closed system, IPC 607.3 calls for a thermal expansion control device.
For a standard 40- or 50-gallon heater running up to 140°F with static pressure up to 80 PSI, a 2.0-gallon tank like the Amtrol Therm-X-Trol ST-5 is sized correctly. Go to an 80-gallon heater, or static pressure over 80 PSI, and it steps up to a 4.4-gallon ST-12. Sizing is set by heater volume, temperature, and your static pressure — not by whatever's cheapest on the truck.
On a closed system, that's the classic sign. With no room to expand, heated water drives pressure past the T&P valve's setpoint and it weeps to relieve it. A missing, undersized, or water-logged tank is usually behind it. We measure your static pressure and check the tank's pre-charge before we ever touch the relief valve, because the valve is doing its job — it's the pressure that's wrong.
No. It ships pre-charged to a generic 40 PSI, which rarely matches a real home. It has to be charged through the Schrader valve to your actual static pressure before it goes in. Install it without matching that pressure and the diaphragm collapses under city pressure and the tank water-logs within months.
